Music City Bridge "The Savvy" - Can't get the low E intonated on LP Special

[Son-of-a-Gib]

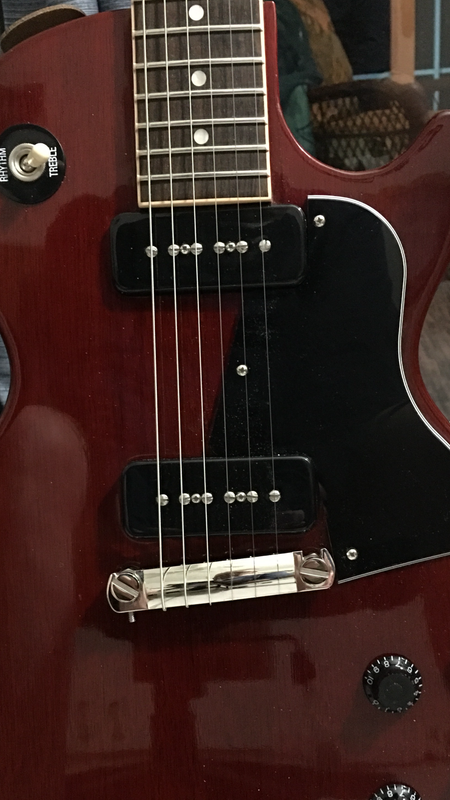

I received the Music City Bridge Savvy tailpiece and installed it yesterday on my new Gibson Les Paul Special. After tuning, checking the relief, and having it at the right action, I'm trying to intonate it now. The high E is pretty much there but the low E is still sharp, even after really pushing the bridge out with the screw (as pictured). I can't imagine it needs to be this far out from the post, let alone even more since it's still sharp. Am I doing something wrong?



[Danb541]

you sure they sent you the right one? If you're having to angle it that much, maybe you were sent the "Stud Finder" version which is the most offset/angled one?



[Son-of-a-Gib]

you sure they sent you the right one? If you're having to angle it that much, maybe you were sent the "Stud Finder" version which is the most offset/angled one?

I just double checked on their website since you mentioned it and it does look to be the Savvy. The Stud Finder has a much bigger high E side and this one is more symmetrical. So thankfully it's the right one.



[Son-of-a-Gib]

Actually, it might be a tuner issue. I went ahead and reset it back to a more normal distance and tested the intonation with a harmonic on the 12th instead of fretted at the 12th and it was actually a little bit flat. I'm using a Peterson strobe headstock tuner so it might just be going haywire when testing fretted strings as opposed to just open ones.



[garagemonkey]

Rather than post a link I just copied/pasted a thread I started on a different forum. Subsequently I read somebody's theory that Gibson actually installed the bass-side post hole about 4-5mm too close to the bridge pickup on the '19-'22 Specials. I have no idea if that's true or not but perhaps that's why some of us can't intonate these things easily. Anyway, post starts here:

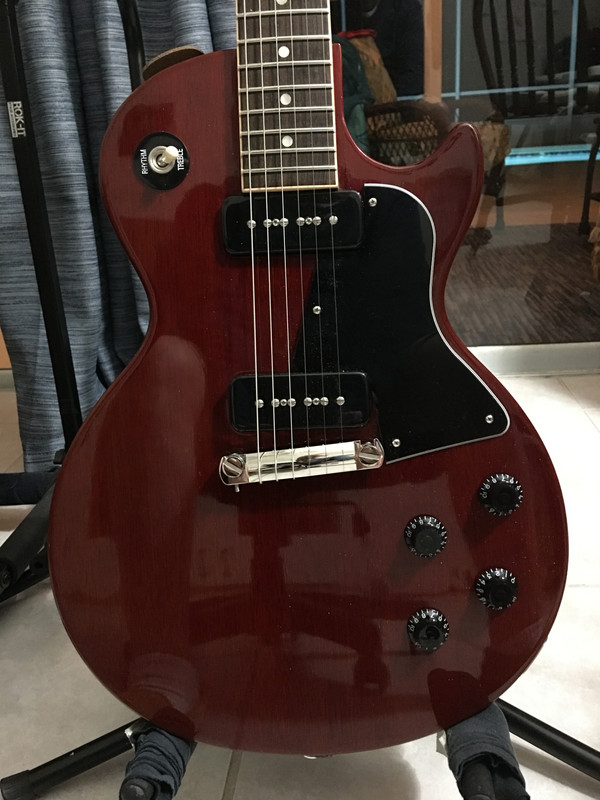

No earth shaking differences, but here's a short trip down wraptail avenue just to share. As a car/truck guy I can't leave anything alone no matter how perfectly adequate it seems. Bought a 2019 Original Collection Les Paul Special from Sweetwater when they first released them. Guitar is great, stays in tune, sounds awesome, and the intonation with the stock Gibson wraptail was always good enough for Rock N Roll.


Stock Gibson Wraptail above


Like many I got hooked on Uncle Larry's YouTube channel during COVID and perked up when Tom Bukovac talked about the Music City bridges he helped create with Nick Glaser. After hearing Tom talk about how good the Music City Stud Finder was on vintage guitars and then seeing a couple newly released Savvy bridges for newer wraptail Gibsons on Instagram I figured what the heck and bought one.


Now this is NOT a knock on the Music City Savvy. It's super nice and I realize not every guitar is built the same or responds the same to similar products. It just happens for this particular application to get the intonation with the Music City Savvy even close to where it was with the stock Gibson bridge I had to sock in the set screws an uncomfortable amount. I still needed to go backwards on the bass side as shown here so I threw in the towel. To their credit, they offered to take the bridge back no questions and give me a refund, but it's a really nice piece so I'm just gonna keep it for a rainy day. (It's a great excuse to buy another wraptail Gibson, right?)


At this point I was about to simply reinstall the Gibson bridge, but a year or two ago I installed a Faber '59 Style bridge and studs in my Melody Maker and it made a huge, huge difference in that guitar, so I went ahead and ordered another for this Special along with Faber's Vintage TP studs.


The stock Gibson studs (left) are steel, but they're shorter than the Fabers (right) and more critically the tolerance on the Faber where the bridge indexes the studs is tighter, allowing almost no bridge tilt (at least with the Faber bridge). Note, I coulda done their locking studs but I didn't really want those on this one.


And here's the new Faber studs and bridge installed and adjusted for intonation. More consistent across all six on this particular guitar than I could achieve with the Music City and a bit better than the factory Gibson bridge.

This isn't saying Faber is better than Music City or Gibson - just what these particular parts did on this particular guitar in the particular manner in which I installed them, which arguably may or may not have been done ideally. I probably could've swapped to these studs or Faber's locking studs with either the Gibson or Music City and gotten better results with less bridge tilt on either bridge.

As for the sound, I was all set to hear this game-changing acoustic improvement and some otherworldly sustain when plugged in. In short, it's pretty much the same. No huge improvement or difference between any of the parts maybe with the exception of the Music City being a bit acoustically quieter (maybe because there was less bridge-to-stud engagement). However, I think these particular guitars already have some pretty good parts in these areas already, so any actual improvement is beyond my feeble ability to discern.

Anyway, that's the 1 Special, 3 Bridges story. Tip your waitress and thanks for coming.



[Son-of-a-Gib]

Rather than post a link I just copied/pasted a thread I started on a different forum. Subsequently I read somebody's theory that Gibson actually installed the bass-side post hole about 4-5mm too close to the bridge pickup on the '19-'22 Specials. I have no idea if that's true or not but perhaps that's why some of us can't intonate these things easily. Anyway, post starts here:


No earth shaking differences, but here's a short trip down wraptail avenue just to share. As a car/truck guy I can't leave anything alone no matter how perfectly adequate it seems. Bought a 2019 Original Collection Les Paul Special from Sweetwater when they first released them. Guitar is great, stays in tune, sounds awesome, and the intonation with the stock Gibson wraptail was always good enough for Rock N Roll.

...

Anyway, that's the 1 Special, 3 Bridges story. Tip your waitress and thanks for coming.

Thanks for posting this. Honestly, that's very in line with what I did. There wasn't anything really wrong with the original tailpiece. I just kinda had the itch to "improve" the guitar when it was just fine to begin with. I was mainly trying to get rid of the bridge tilt because it just looks odd but didn't realize I also needed the locking studs. So I kind of created my own problem. If I go back to the original bridge, I'll just keep this MCB one as well because like you said. You never know what guitar will come down the pipeline that could use it!



[rockabilly69]

Actually, it might be a tuner issue. I went ahead and reset it back to a more normal distance and tested the intonation with a harmonic on the 12th instead of fretted at the 12th and it was actually a little bit flat. I'm using a Peterson strobe headstock tuner so it might just be going haywire when testing fretted strings as opposed to just open ones.

headstock tuners blow!



[Big Al]

The 12th fret harmonic is set by tuning the string to pitch. The pitch of the tuned open string AND the 12th fret harmonic should match. If not, how the heck does that work? The harmonic is the octave node of the sounding string? The only time I found this not true was with single coil or humbuckers with magnet in the coil pole pieces. A staple magnet soapbar too close to the strings had me drooling and crosseyed stupefied once because the polepiece magnets were set so high they pulled the string out of tune, like on a Strat.
A bad string will have the same issue. I use rack mounted Korg tuners set on strobe setting in my shop and have used stobe Korg Sledgehammer Pro clip ons with no issues.


Then it's just a matter of adjusting the harmonic to the fretted 12th fret so the adjusted fretted pitch matches the harmonic.



[Shane McCrae]

I received the Music City Bridge Savvy tailpiece and installed it yesterday on my new Gibson Les Paul Special. After tuning, checking the relief, and having it at the right action, I'm trying to intonate it now. The high E is pretty much there but the low E is still sharp, even after really pushing the bridge out with the screw (as pictured). I can't imagine it needs to be this far out from the post, let alone even more since it's still sharp. Am I doing something wrong?


View attachment 24998

I had the same problem with first one I ordered. That was before their studs were available and the bridge tilted badly in the stock studs. I returned it. Recently I ordered two Savvys, and MCB studs, which effectively prevent the tilting. Problem solved. On both my Custom Shop Special and my USA Junior the intonation is dead on. If you didn’t order and install the studs right off, do it now.
Then you’ll be happy.



[garagemonkey]

Since I posted (#45 above) I anecdotally read/heard that some of these later wraptail Gibsons have the studs positioned incorrectly to realistically intonate properly. Makes sense since I can get my '07 Melody Maker '59 Reissue bang-on with any of these bridges and can only get "rock n roll close" with the 2019 Original Collection Special.



Fret-to-nut measurements on both my wraptail guitars are the same, but the bass side stud on the Special is 1/4-inch higher (closer to fretboard) compared to the MM and the treble stud is 1/8-inch higher.

Given that fact, were the posts in the right place I think the Savvy would work perfectly with my Special....so in short it aint the bridge, it's the guitar. At least in my case.



[garagemonkey]

<double post deleted>



[Scozz]

I was having trouble with stock bridge on my newly acquired used 2019 Gibson Special, 50’s construction Special in Heritage Cherry. The stock wrap bridge had intonation issues as well as string alignment problems, and an occasional Sitar type affect coming from the high E string.

I purchased a Music City Savvy and locking studs and they made a world of difference compared to the Gibson stock wrap bridge, also it’s much lighter.

I did have an issue adjusting the action using the MC locking posts, it was a pita to get them right. I ended buying the Faber locking studs to use with the MC bridge. They work great with the Music City bridge, and the bridge corrected all the issues with the stock bridge. Alignment is perfect now, the stock Gibson wrap bridge alignment was not very good at all.

The best part of this simple mod is the improved tone and sustain of the guitar, really an incredible difference for only changing out the wrap tail and posts,… and the guitar sounds clearer, louder, sweeter than before, and no unwanted Sitar sounds.



[Bruce R]

Love that cherry Junior!



[Son-of-a-Gib]

I had the same problem with first one I ordered. That was before their studs were available and the bridge tilted badly in the stock studs. I returned it. Recently I ordered two Savvys, and MCB studs, which effectively prevent the tilting. Problem solved. On both my Custom Shop Special and my USA Junior the intonation is dead on. If you didn’t order and install the studs right off, do it now.
Then you’ll be happy.

Oh, I did end up getting the MCB studs and that helped a bunch! The guitar plays very well now.



[Vics53]

I installed the Savvy bridge on my SG Special. As others said, it was a pain trying to get the bridge heigth adjusted. Wish they would have had two more notches on the studs. Also had a hard time getting the high E string intonated. Even now it's just a bit flat but not enough to where your face goes sour when you play a chord. But all in all it works so much better than the stock bridge.
